Distribution box

RCB Plastic Distribution Box

SMICO is a distribution box manufacturer and our circuit breaker protection box casings are made of plastic material and are waterproof. Parameter: 24-hour maximum ambient temperature: 35℃ Ambient tem

...

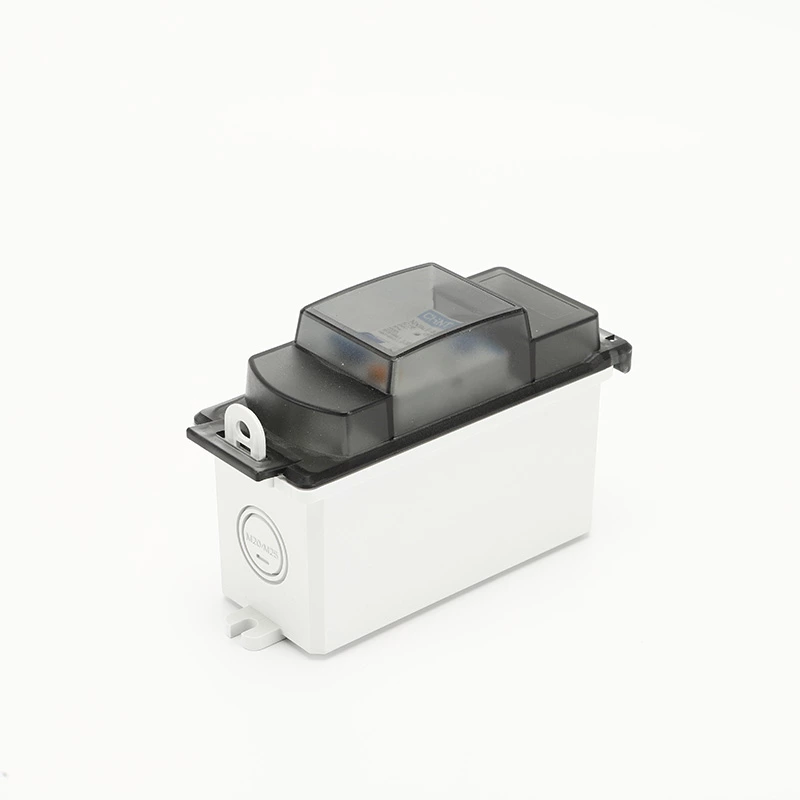

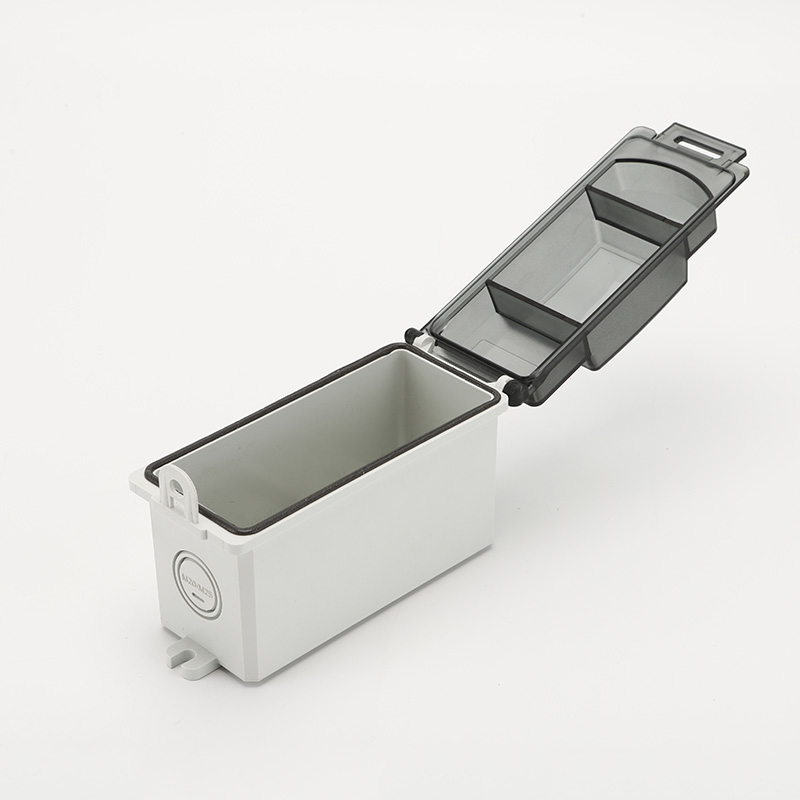

SMICO is a distribution box manufacturer and our circuit breaker protection box casings are made of plastic material and are waterproof.

Parameter:

24-hour maximum ambient temperature: 35℃                                               Ambient temperature: -5°C to +40°C

Relative humidity: ≤ 50% at 40°C, ≤ 100% at 25°C                                          Rated voltage: Un=400V

Rated insulation voltage: Ui: 690V                                                                    Protection level: Level II

Comply with standards: EN 60670-1, DIN EN 60670-24                                   N separable: no

Material: ABS shell/PC door                                                                              Temperature resistance: -25°C to +80°C

Impact protection level: IK09                                                                            Rated current (terminal): In = 75 A

Color: RAL 7035                                                                                                IP protection level: IP67

UL 94 Rating: V-2

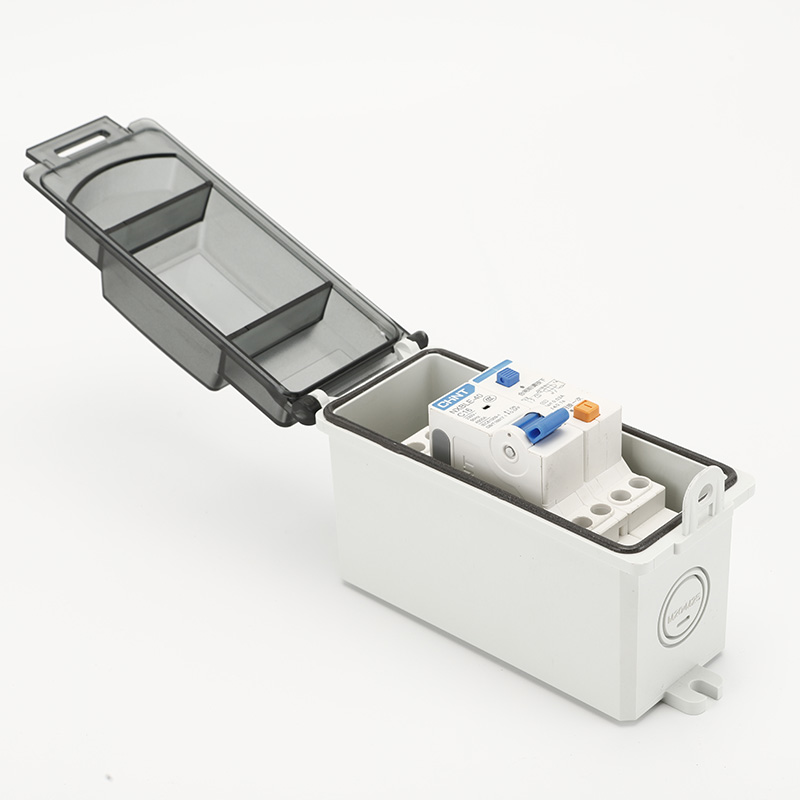

SMICO's plastic distribution boxes are ideal for outdoor installation, using removable DIN rail plates and high-quality ABS flame-retardant panels to ensure high protection levels (IP67) and impact protection levels (IK09). This distribution box has the characteristics of flame retardant, impact resistance, insulation, etc. It is suitable for DIN rail circuit breakers and direct wiring, and is widely used in various scenarios. Its rated voltage is 400V and rated current is 75A, meeting international standards such as EN 60670-1 and DIN EN 60670-24. In addition, the IP67 plastic street light waterproof box is composed of ABS shell and PC door, which has excellent heat resistance and halogen-free and silicon-free characteristics, providing a reliable and long-lasting solution for power distribution.
