Junction Box With Hinged Door

We specialize in providing high-quality electrical enclosures that are designed to meet the diverse needs of our customers.

...
Model Number:
SHK-203013

Description:

SMICO's plastic junction boxes are characterized by intelligent construction and attention to detail. They are made of halogen-free thermoplastics, ensuring safety and environmental responsibility. The use of high-quality materials results in reasonably thick walls, providing excellent durability and protection for internal components .

Parameter:

L W H Model
100 150 90 Junction Box With Hinged Door
125 175 90
150 150 90
160 210 100
175 275 110
200 300 130
250 350 150
330 430 180
430 530 200
430 630 230
530 730 250
630 830 280

Characteristic:

Product Features:

  • Color: RAL 7035

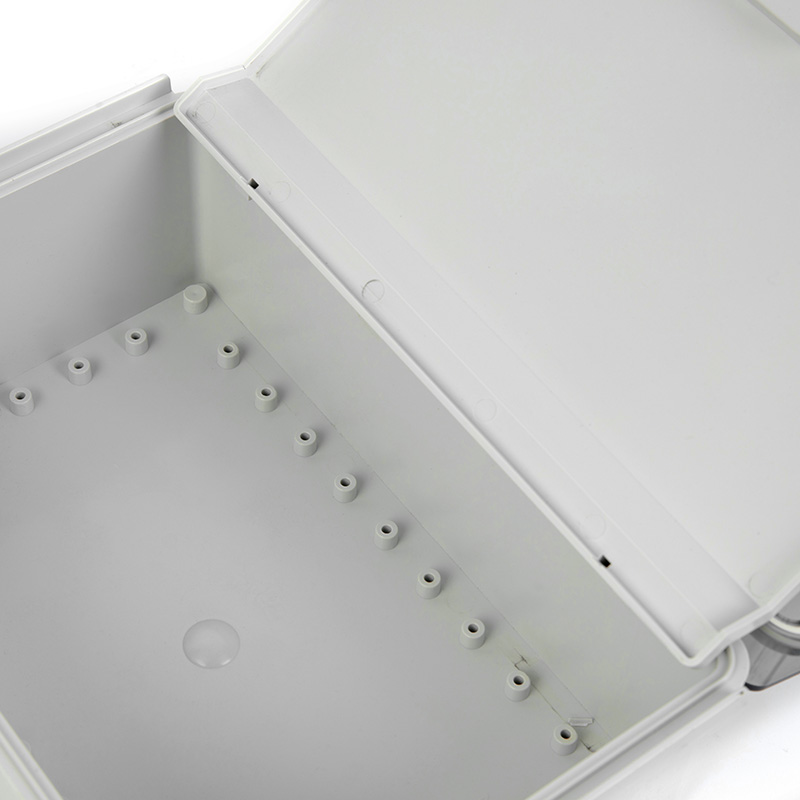

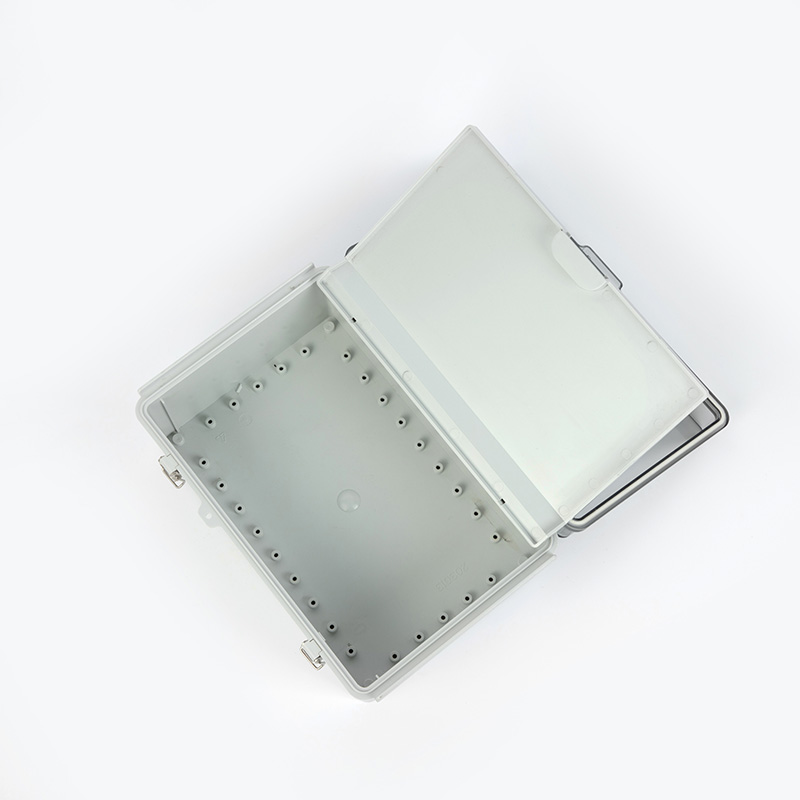

  • Hinged door design for easy maintenance
  • IP66 waterproof and dustproof
  • IK09 impact resistance
  • Flame retardant: 650℃ (30s)

Environmental conditions:

  • Indoor/outdoor installation
  • Temperature: -5°C to +40°C
  • Humidity: adapt to different humidity environments

Performance parameters:

  • Rated voltage: 400V
  • Rated current: 75A
  • Comply with standards: EN 60670-1, DIN EN 60670-24

Material properties:

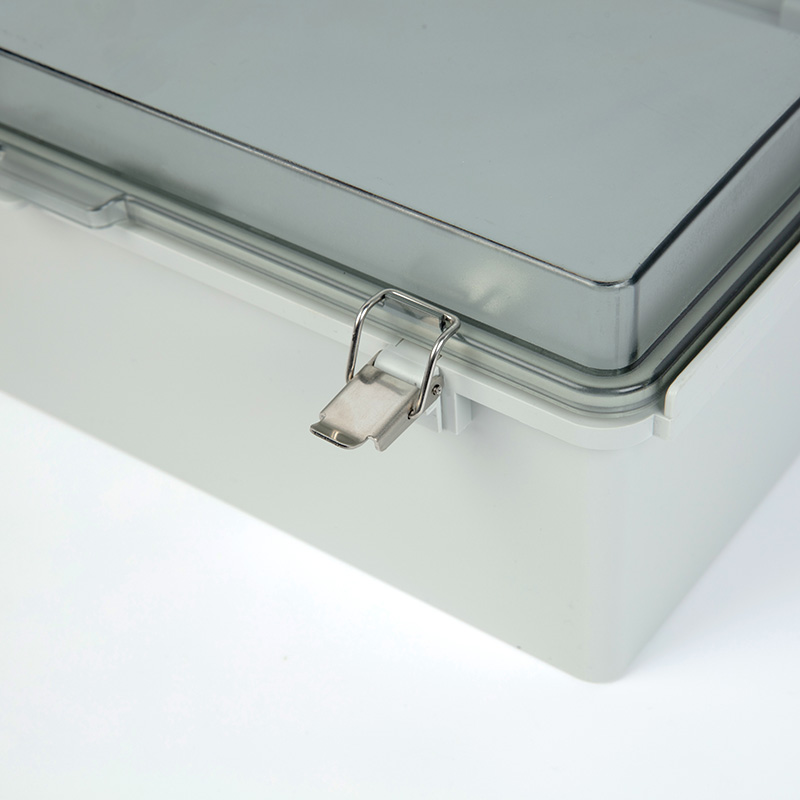

  • ABS shell/PC door
  • Flame retardant, temperature resistant: -25°C to +80°C
  • Halogen-free, silicon-free

Application scenarios:

  • Metallurgy, steel, nuclear power plants
  • Tunnels, subways, charging piles
  • Photovoltaic systems and other electrical connection environments that require waterproofing and dustproofing
