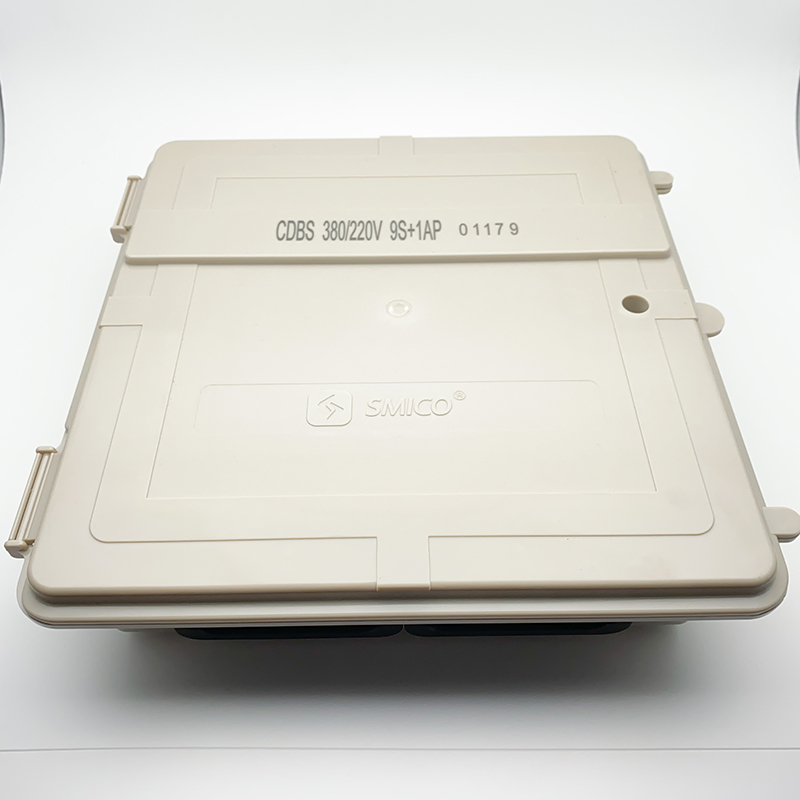

Junction box sealed connections in low voltage aerial network connections cdbs-tsc
CHARACTERISTIC TECHNIC
Material
:
Polycarbonate with anti-uv
Dimension
:
285mmX295mmX65mm
Bypass bar
:
copper alloy;
322 Mm2 section for phases and 144M2 for neutral;
6 connec...
- Model Number:
- CDBS 380/220V 9S+1AP
- Material:
- Polycarbonate with anti-uv
| CHARACTERISTIC TECHNIC | ||
| Material | : | Polycarbonate with anti-uv | ||||
| Dimension | : | 285mmX295mmX65mm | ||||
| Bypass bar | : | copper alloy; | ||||
| 322 Mm2 section for phases and 144M2 for neutral; | ||||||
| 6 connection points for phases and 11 for the neutral; | ||||||
| busbar coating | : | epoxy resin (dielectric resistance 180kv / cm) | ||||
| terminal protection : | : | cable lugs with rubber plugs screw holes: strips of rubber plugs | ||||
| hinges | : | 2 hinges of the same material of the caia | ||||
| lock | : | 1 Allen Head Bolt | ||||
| operating temperature | : | < = 90°C | ||||
| fastening to the pole or vain | : | 2 metal strap pins (post), 2 holes for headband (for span) | ||||
| connection torque | : | 2.6 N-m 8 23 IN-LG) | ||||
| NUMBER OF RUSHES | : | 9 SINGLE PHASE + 1 APV IN 370 / 220V SYSTEM | ||||
| CABLE SECTION | : | POWER SUPPLY CABLE: UP TO 16mm2 | ||||
| : | branch cable up to 16mm2 | |||||
| nominal load | : | 60KW | ||||
| maximum load | : | 75KW | ||||
| APPLICATION | |||||
| Used as a single-phase and / or three-phase connection in low voltage in the air network, | |||||
| for areas of high corrosion and high industrial contamination. | |||||
