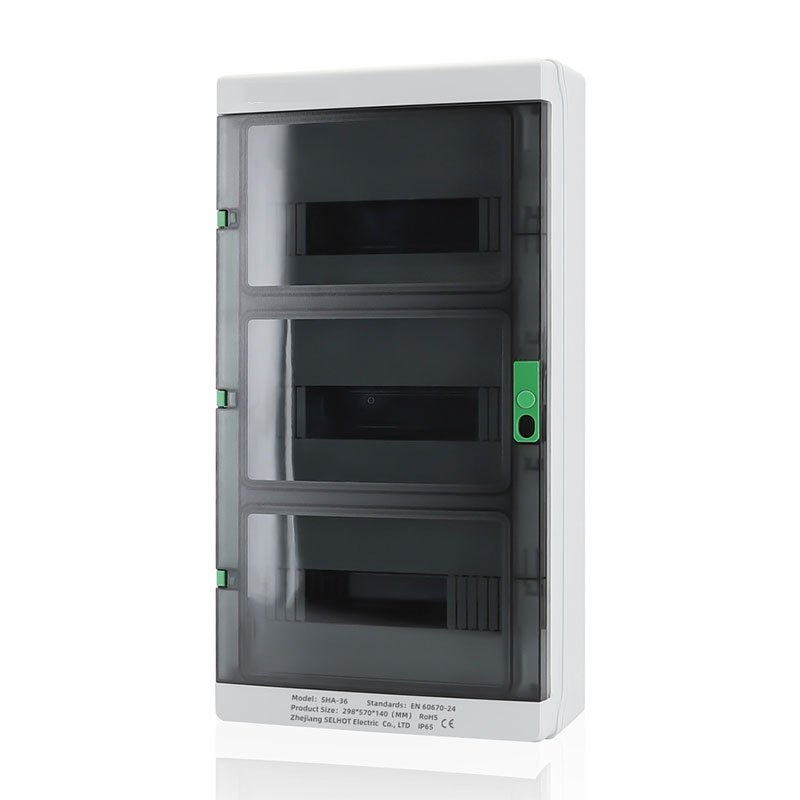

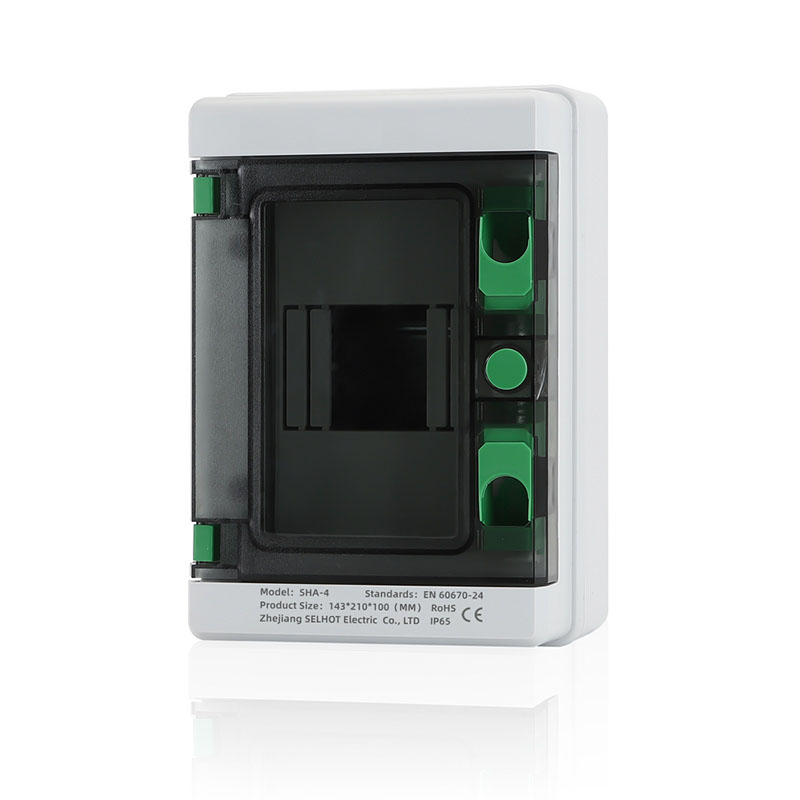

IP65 Distribution Box

Description: SMICO's IP65 protection rating is one of the common protection rating standards for outdoor plastic distribution boxes. IP represents the international protection level (Ingress Protectio

...
Model Number:
SHA

Description:

SMICO's IP65 protection rating is one of the common protection rating standards for outdoor plastic distribution boxes. IP represents the international protection level (Ingress Protection), 65 means dustproof level 6 and waterproof level 5. This grade of distribution box is highly waterproof and can be used in outdoor environments, effectively preventing dust and water from entering.

IP65 Distribution Box

Characteristic:

Mechanical properties:
Cover type: with cover
Transparent cover: yes
Number of modules: 4-36 channels
Number of lines: 1-3 lines
Protection level: IP65 (dustproof and waterproof), IK09 (resistance to mechanical impact)


Environmental conditions:

Application areas: indoor/outdoor
Maximum temperature in 24 hours: 35℃
Working temperature: -5℃ to +40℃
Relative humidity: ≤50% at 40°C, ≤100% at 25°C


Electrical characteristics:

Rated voltage: Un=400V
Rated insulation voltage: Ui=690V
Protection level: Level II
Rated current (terminal): In=75A
Comply with standards: EN 60670-1, DIN EN 60670-24


Material properties:

Material: ABS shell/PC door
Glow wire test: IEC 60695-2-11, 650°C
Temperature resistance: -25°C to +80°C
Halogen-free, silicon-free


SHA series features:

Small size, easy to install
Fixed location, unique configuration
Not limited by site, widely used
Stable and reliable operation, high space utilization
Small footprint and good environmental protection effect
