11-38kV Expulsion Fuse Cutout for electrical distribution

High performance of weather aging resistance

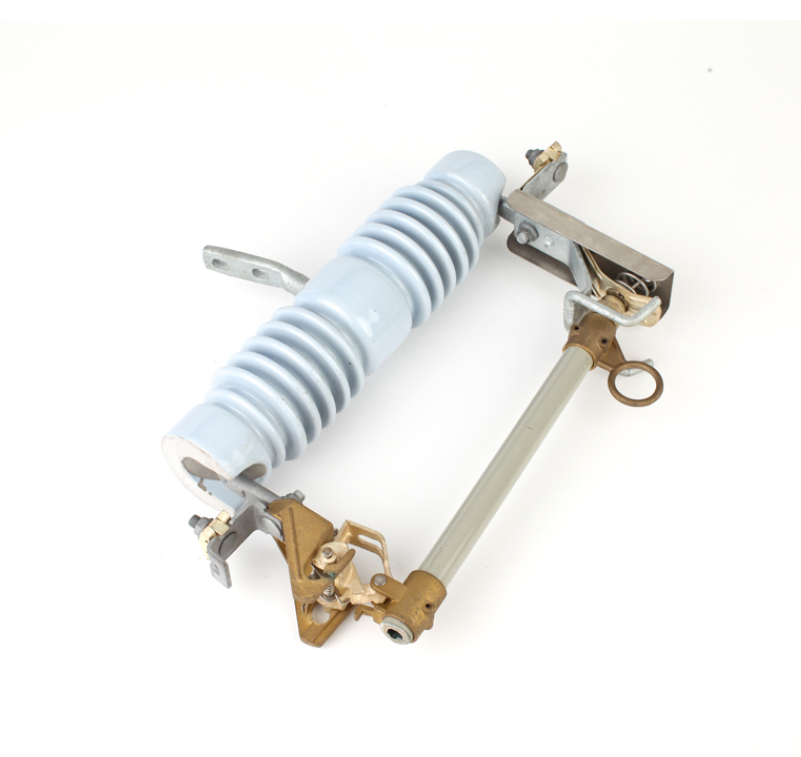

1. For porcelain insulator, the porcelain body connects with hardware fitting by cement pouring, we use the (Prorok)ANCHORING cement manufactured by CGM INC from USA. This kind of cement has rapid solidification, high mechanical strength, low expansion coefficient and superior weather resistance.

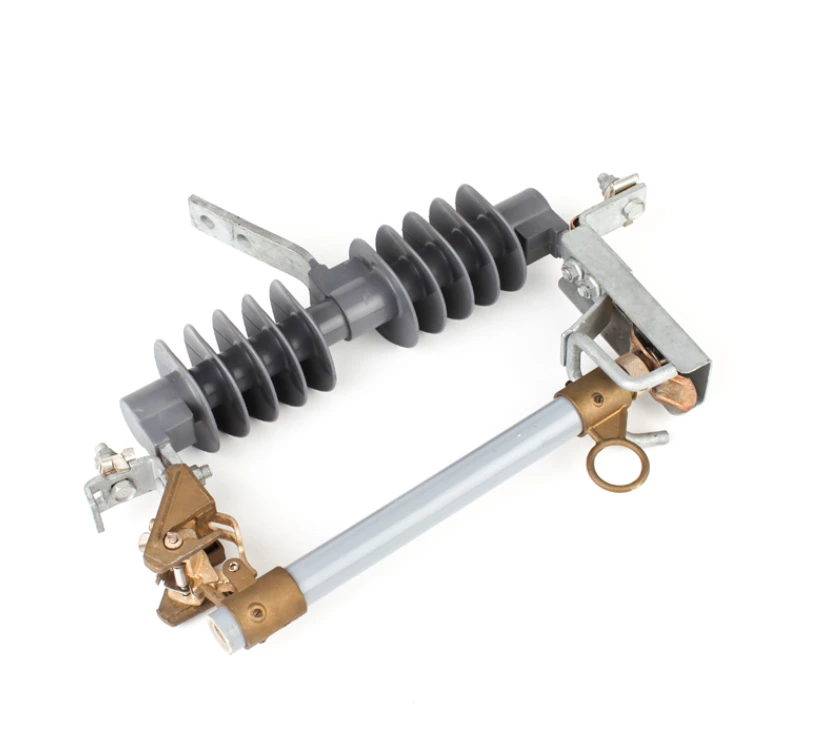

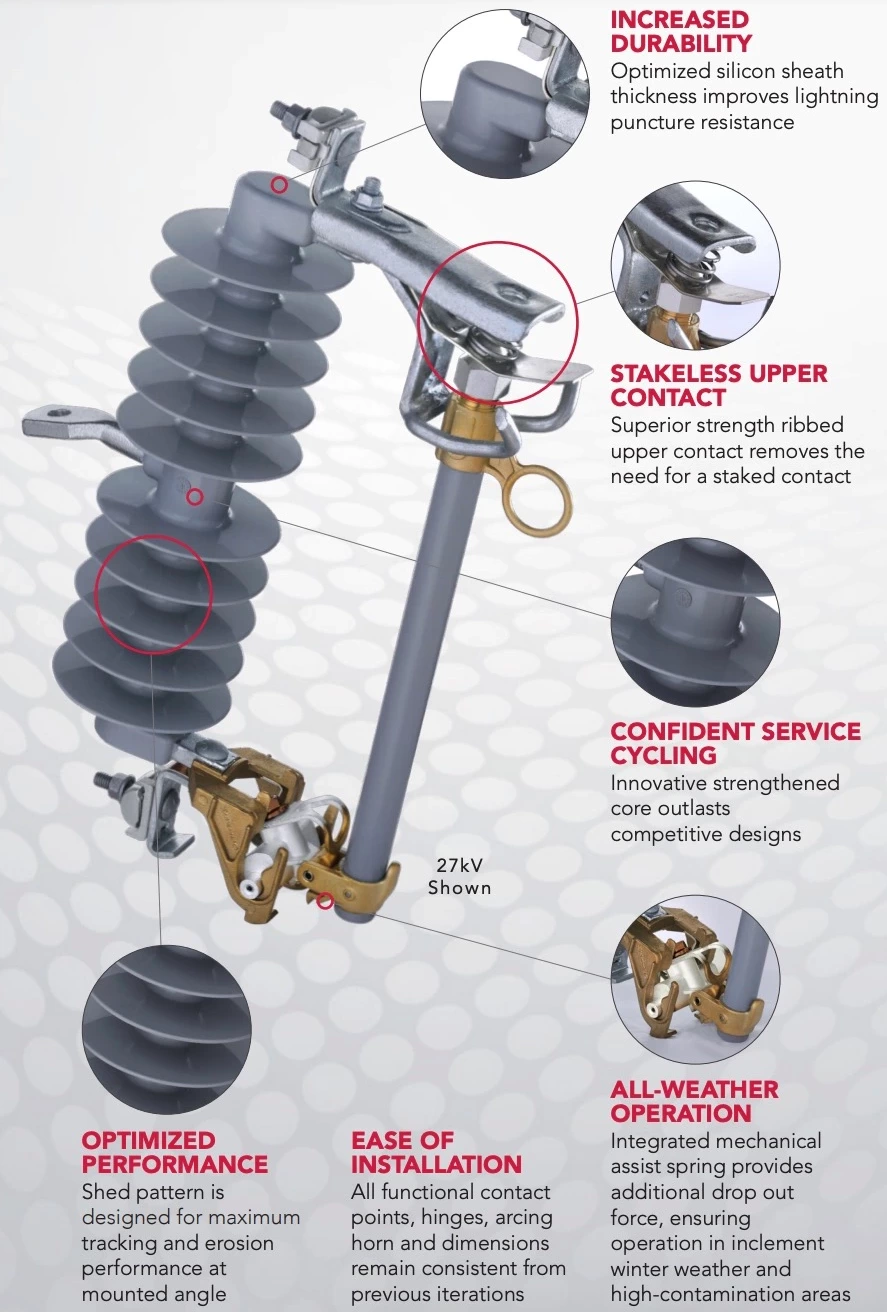

2. For polymer insulator, the hardware fitting crimped onto fiberglass rod, material of housing and sheds manufacture of high-temperature Vulcanized Silicone Rubber, and the insulator molded by one piece injection molding. It has good sealing performance and good performance of tracking and erosion resistance.

3. All ferrous parts processed by hot dip galvanized, its zinc coating more than 86u, it has good corrosion resistance.

Design feature of single vent

1. Our fuse cutout adopts the design feature of single vent, exhaust downwards and outwards when fuse cutout interrupt. Prevent the intrusion of rainwater, avoid damage to the upper line by free gas, and this design can improve the interrupt capacity

2. It adopts Arc-shortening copper rod to improve the interrupt capacity when short circuit fault.

Excellent conductivity

1. All copper casting parts adopt bronze/brass, it has excellent mechanical strength and excellent conductivity.

2. All contact parts are silver-plated, it adopts convex design on the contact surface, this design can reduce the contact resistance and ensure excellent conductivity.

3. The high-strength memory cooper alloy sheets can ensure contact with lower contact smoothly and without any affecting when fuse drops out.

Reliable load breaking capacity

For Load break type fuse cutout, its arc chamber made of special reinforced nylon material. It has good mechanical strength, anti-aging and flame retardant. suitable for use the area like high ultraviolet areas, high altitude areas, coastal areas, etc.

Relevant international executive standards
We manufacture all fuse cutouts and test according to the latest international standard IEC 60282-2:2008 & IEEE Std C37.41-2008 & IEEE Std C37.42-2009.

• High performance of weather aging resistance
• Design feature of single vent
• Excellent conductivity
• Reliable load breaking capacity
• Relevant international executive standards

Porcelain Dropout Fuse Cutouts are used in various applications within the power transmission and distribution industry. Here are the main application places:

1. Overhead Distribution Lines: Porcelain Dropout Fuse Cutouts are widely used in overhead power lines to protect transformers, capacitor banks, and branch lines from faults and overloads.

2. Transformers: These fuse cutouts are installed on distribution transformers to provide overcurrent protection and to isolate the transformer in case of a fault.

3. Capacitor Banks: They are used to protect capacitor banks in distribution networks by disconnecting them during fault conditions.

4. Branch Circuits: Fuse cutouts are employed on branch circuits to protect the equipment and cables from damage due to overcurrents or faults.

5. Renewable Energy Installations: They are increasingly used in renewable energy systems, such as solar and wind farms, to protect the equipment and ensure safe operation.

6. Industrial and Commercial Facilities: Porcelain Dropout Fuse Cutouts are also utilized in industrial and commercial facilities for protecting various electrical equipment and ensuring reliable power supply.

These applications highlight the importance of Porcelain Dropout Fuse Cutouts in maintaining the safety and reliability of electrical distribution systems.

01. Manufacturer Offering Competitive Pricing and High Quality.

We are a direct-sales manufacturer offering both competitive pricing and high-quality products, helping you gain a foothold in the market—specifically in Wenzhou, Zhejiang Province, China. You are warmly invited to visit our company.

02. OEM/ODM Services.

We are a manufacturer backed by an exceptional and highly collaborative team.

03. Standard Payment Terms.

We accept various payment methods, including Telegraphic Transfer (TT) in advance, Letters of Credit (L/C), Western Union, and others. Please feel free to contact us if you have any questions!

04. Warranty Period.

1.5 years. Any quality issues will be resolved through free replacements included with your next order.

05. Free Samples.

Yes, we provide samples of smaller products for your quality assessment; you are only required to cover the courier fees.
