Heavy duty connector Ratchet crimping tool 10A ,16A for HEE,HDD series

Heavy duty connector Ratchet crimping tool 10A ,16A for HEE,HDD series

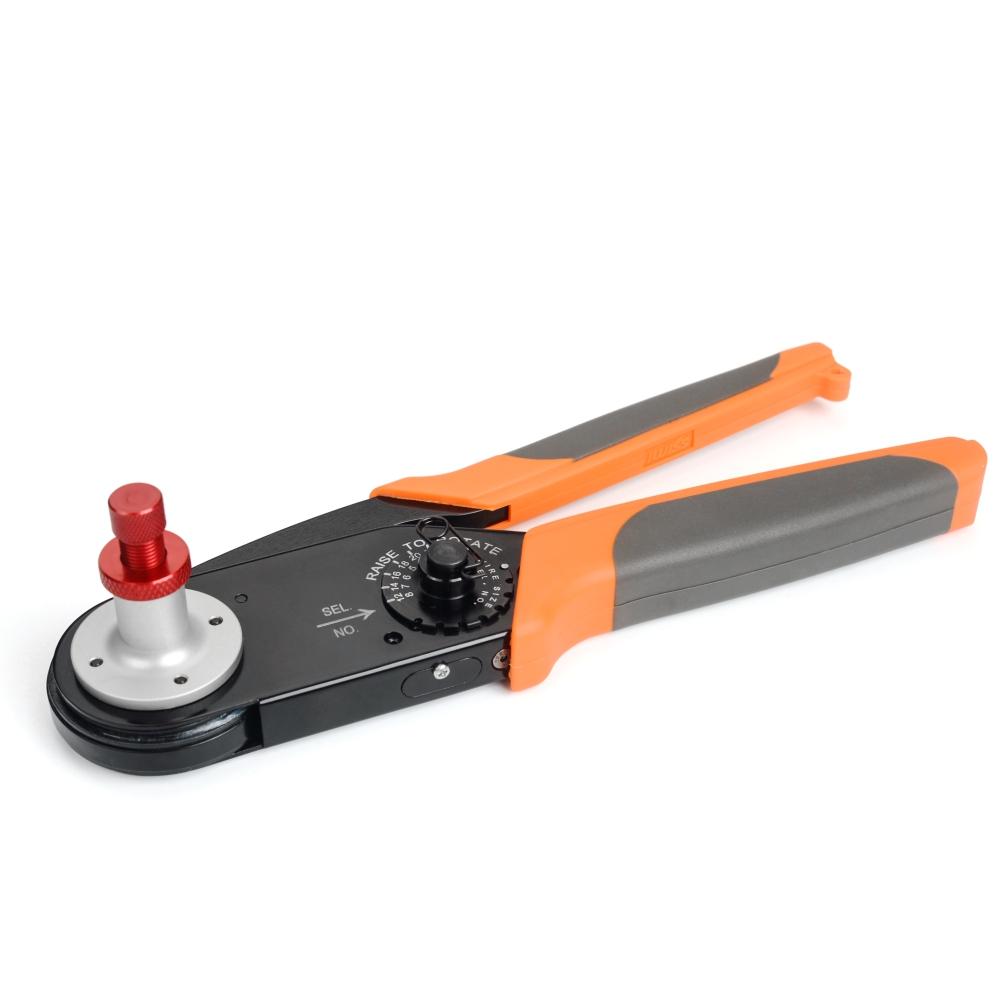

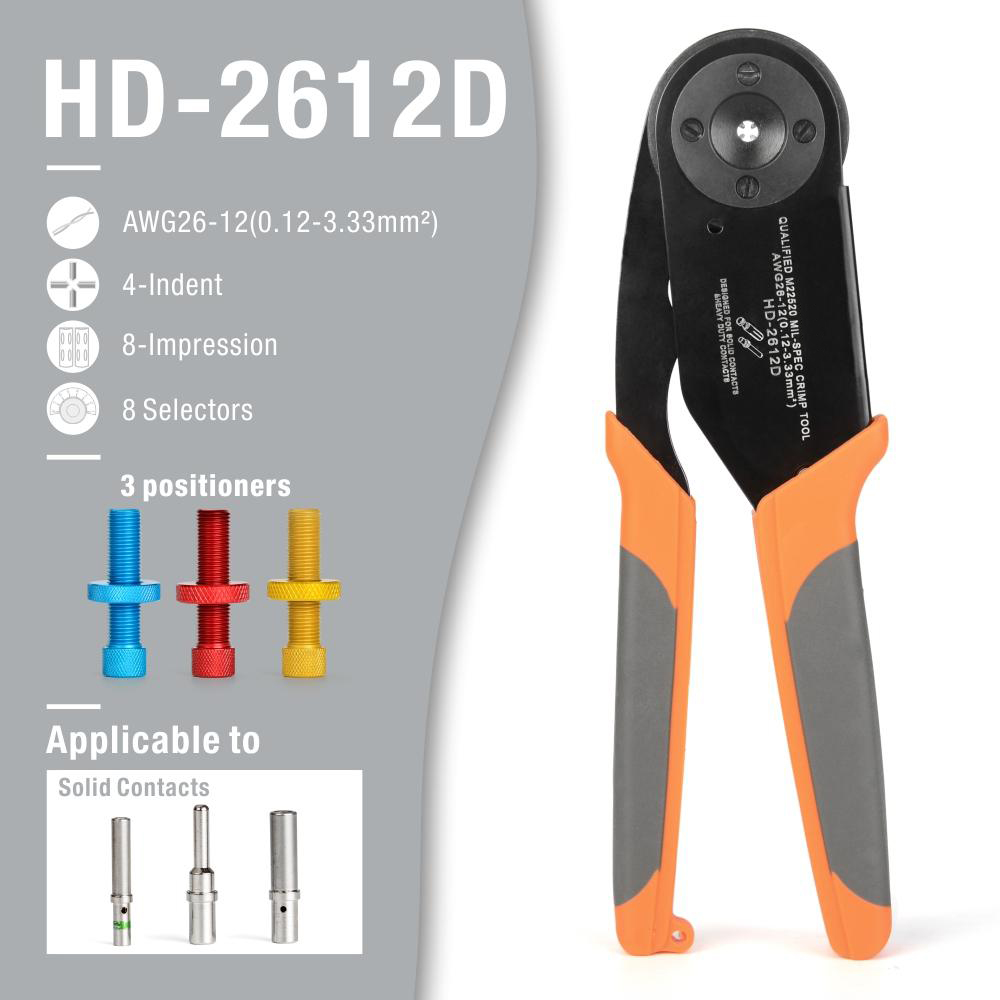

Model No.: HD-2612D

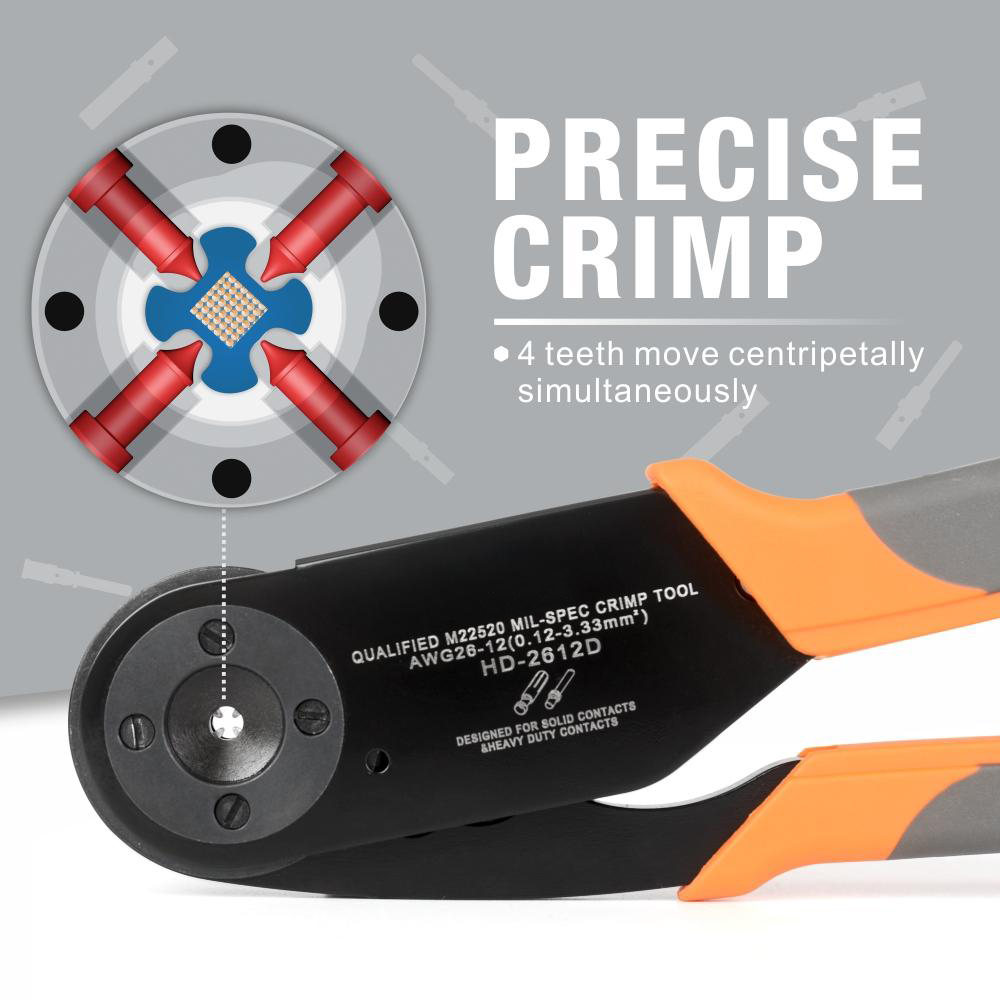

• Typical 4-indent 8-impression crimping tool with 8 selector numbers to be chosen for Deutsch solid contacts AWG 26-12, designed according to M22520/1-01, qualified to HDT-48-00
• Precise and solid internal teeth ensure stability and power equality on the terminals brings a precise crimping result

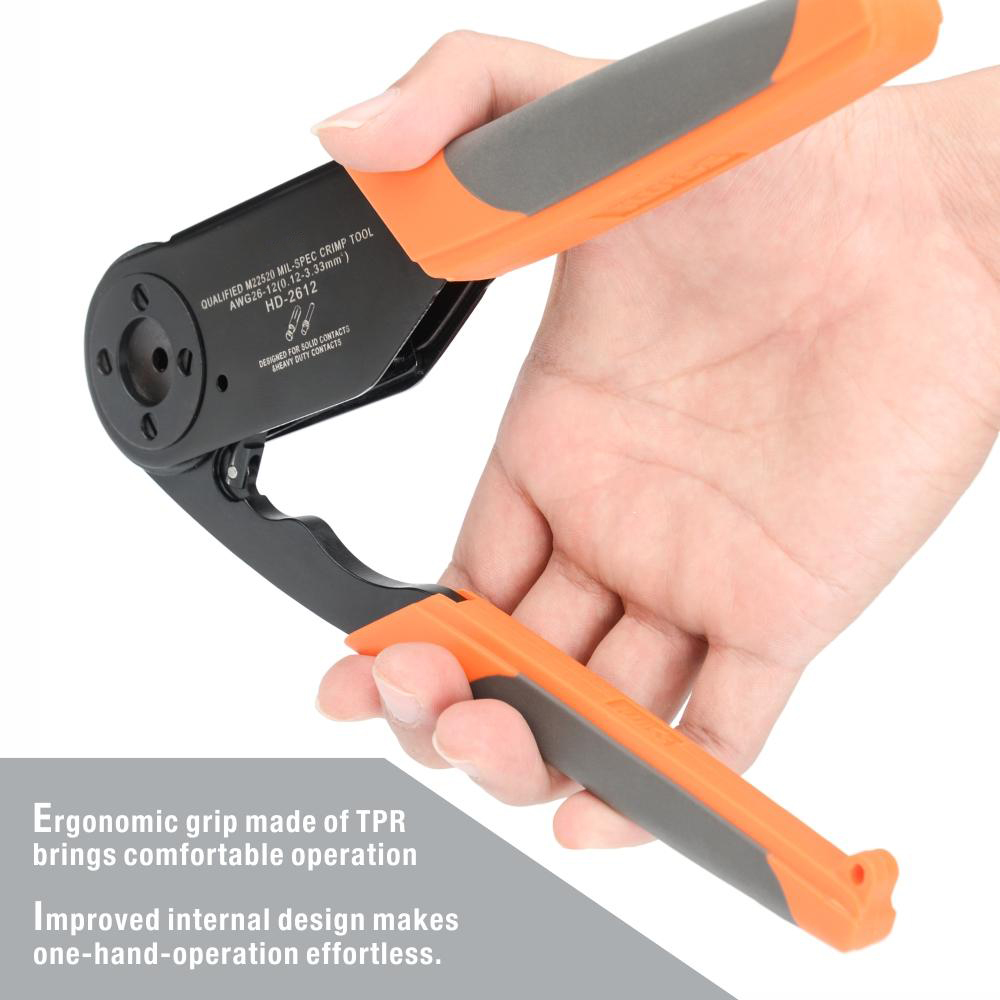

• The tool body is made of high-quality carbon steel with rust prevention to ensure a long service life and the grips are wrapped with TPR for a comfortable operation with one hand
• Applicable to Deutsch DT, DTP, DTM, DTHD, Hd30, HDP20, DRC, Hd10, DRB, Jiffy Splice series connectors widely used in Automotive, Heavy Duty, Marine, RV, AG, Construction Equipment and Maintenance Industries

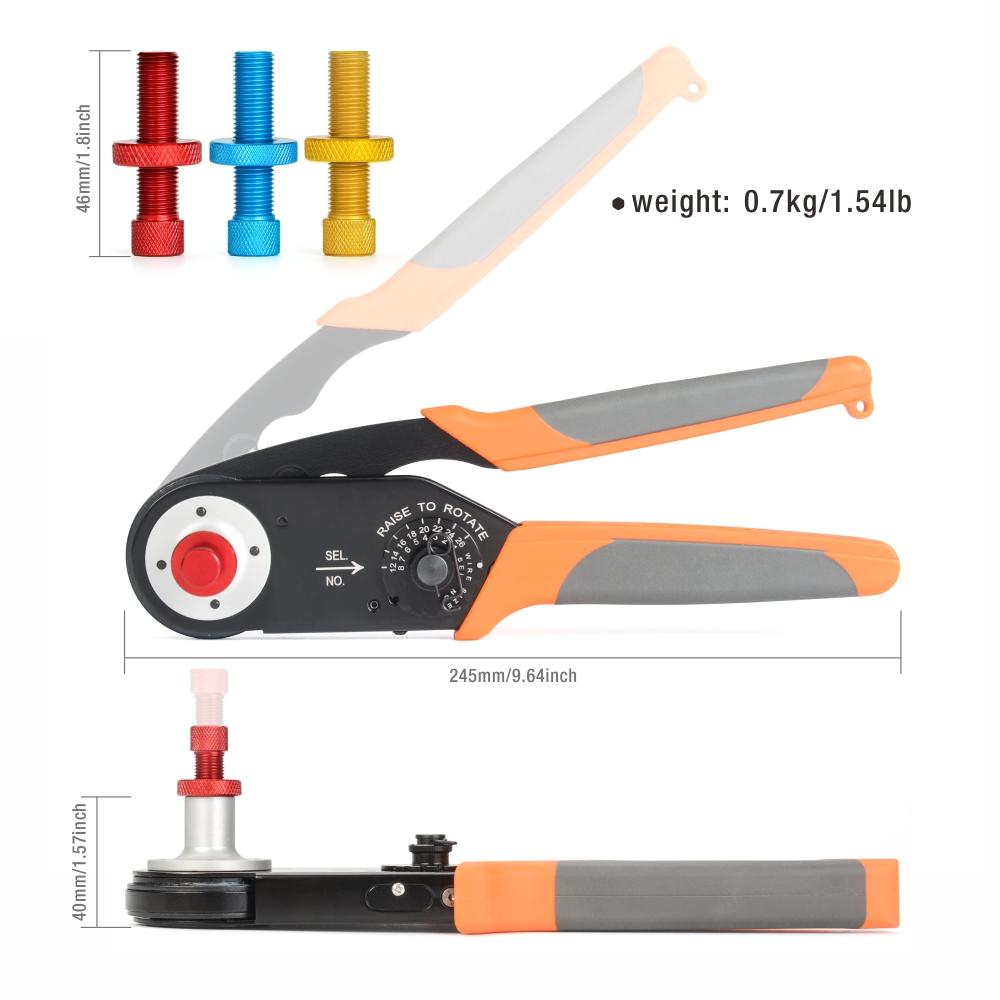

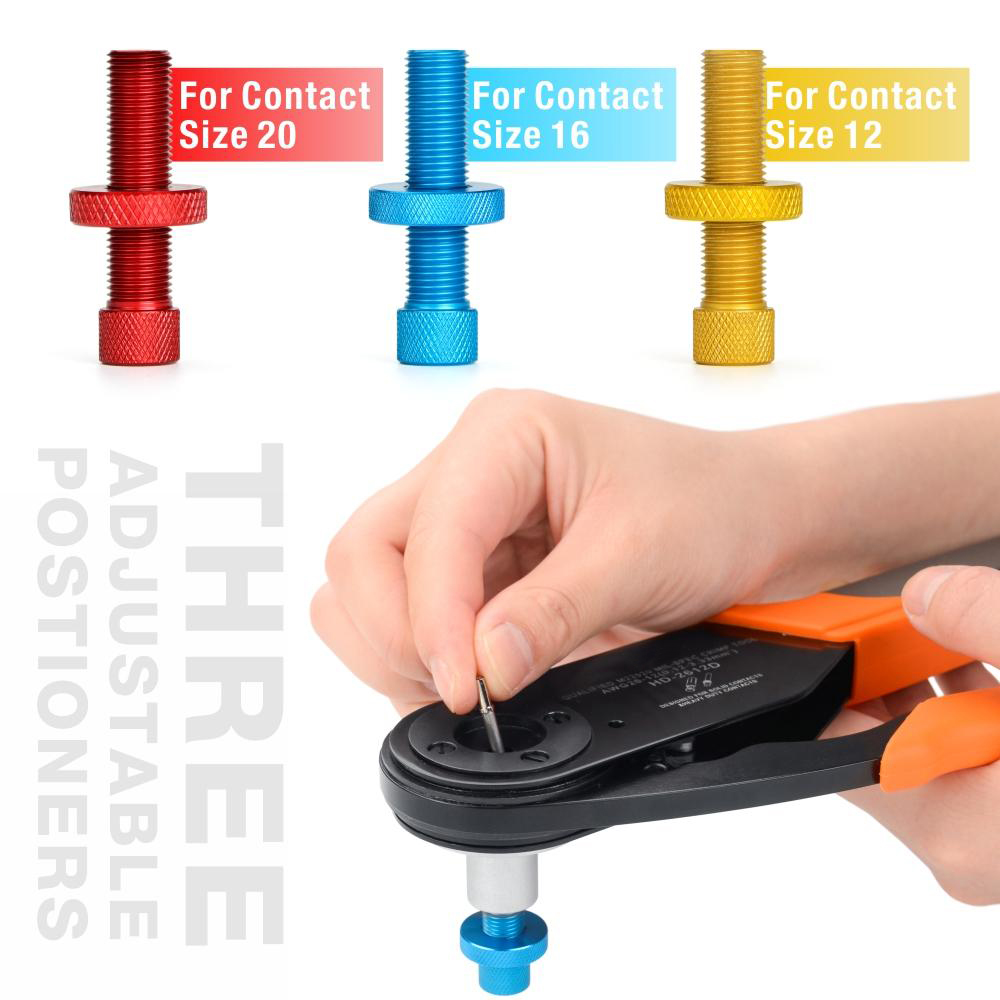

• 3 Positioner (compatible with Deutsch solid contact size 12,16,20) included
• No Go/no Go gauge or ontact&wedgelock removal tool included

Crimping tool for heavy duty connector Specifications:

Wire Cross Section Minimum: 0.14mm²
Wire Cross Section Maximum: 3.33mm²
Han D: 0.14mm² to 1.5mm²
Han E: 0.5mm² to 3.33mm²
Han C: 1.5mm² to 3.33mm²

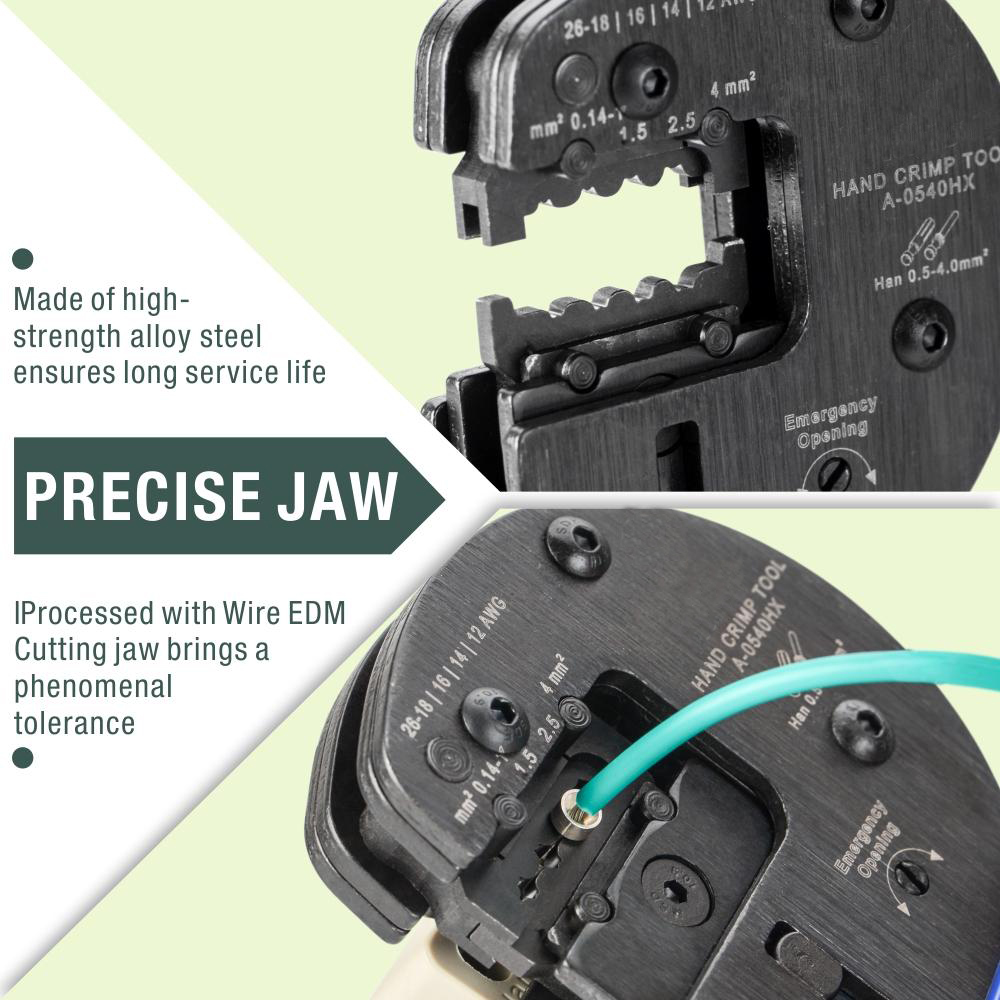

• Precise crimping die processed with WIRE EDM Cutting to ensure a phenomenal tolerance
• Ratchet mechanism increases the crimp reliability and enables the operator to repeatedly produce consistent, high-quality crimps
• Ratchet emergency releasement can be actuated when miss-crimp
• Ergonomically designed, non-slip handles for comfortable use

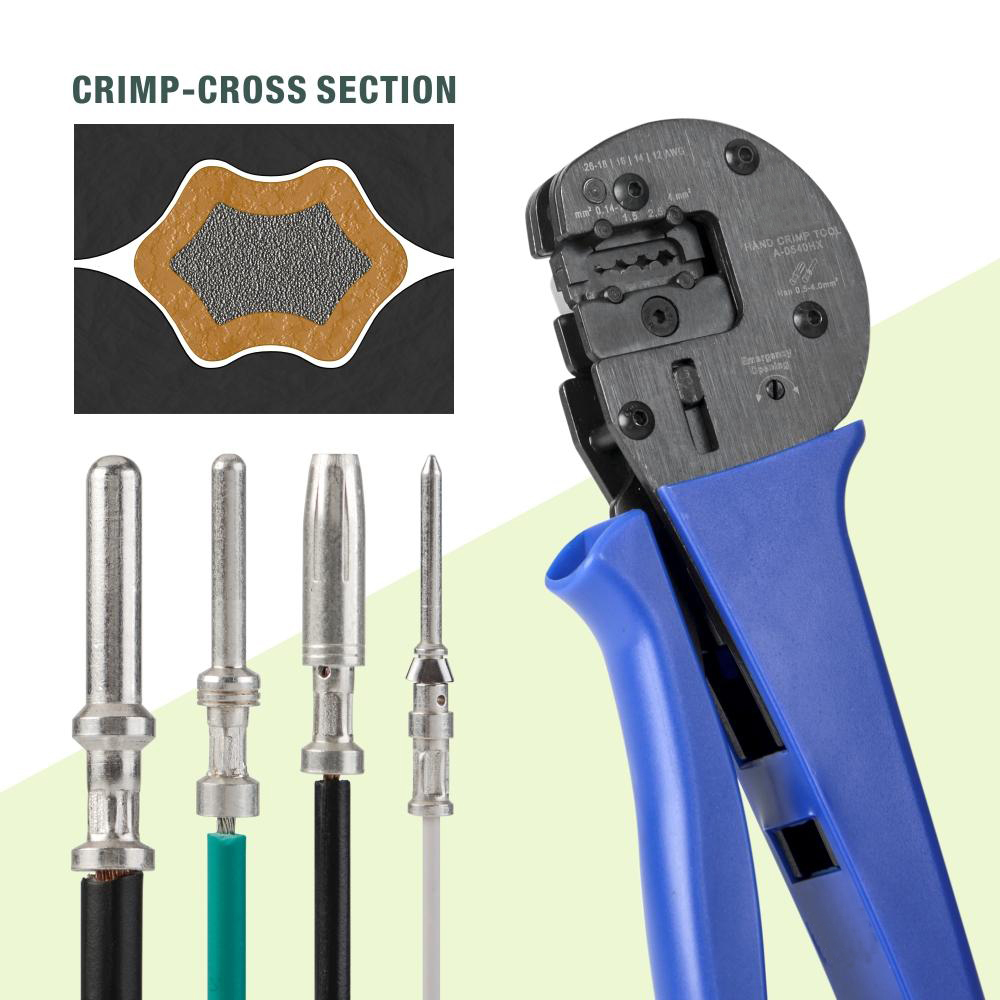

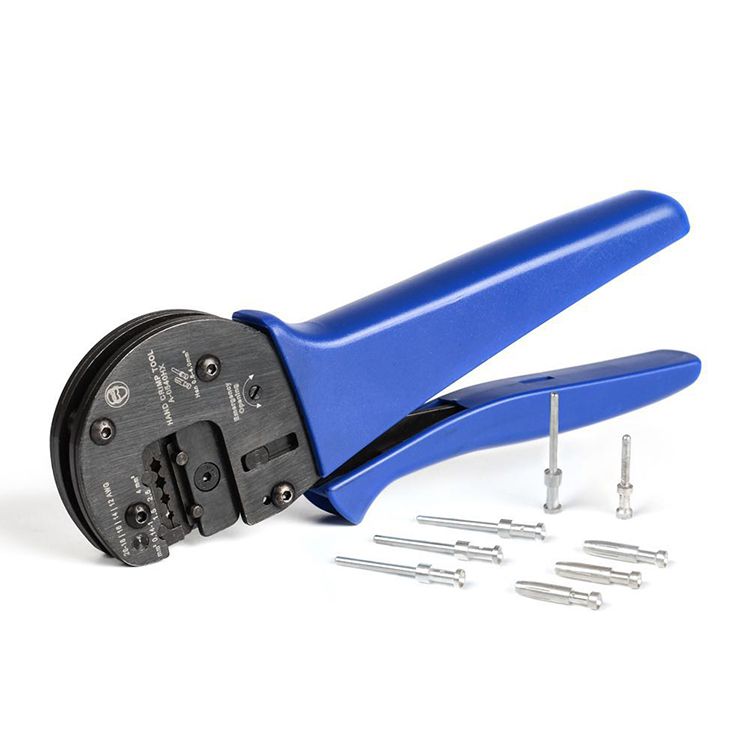

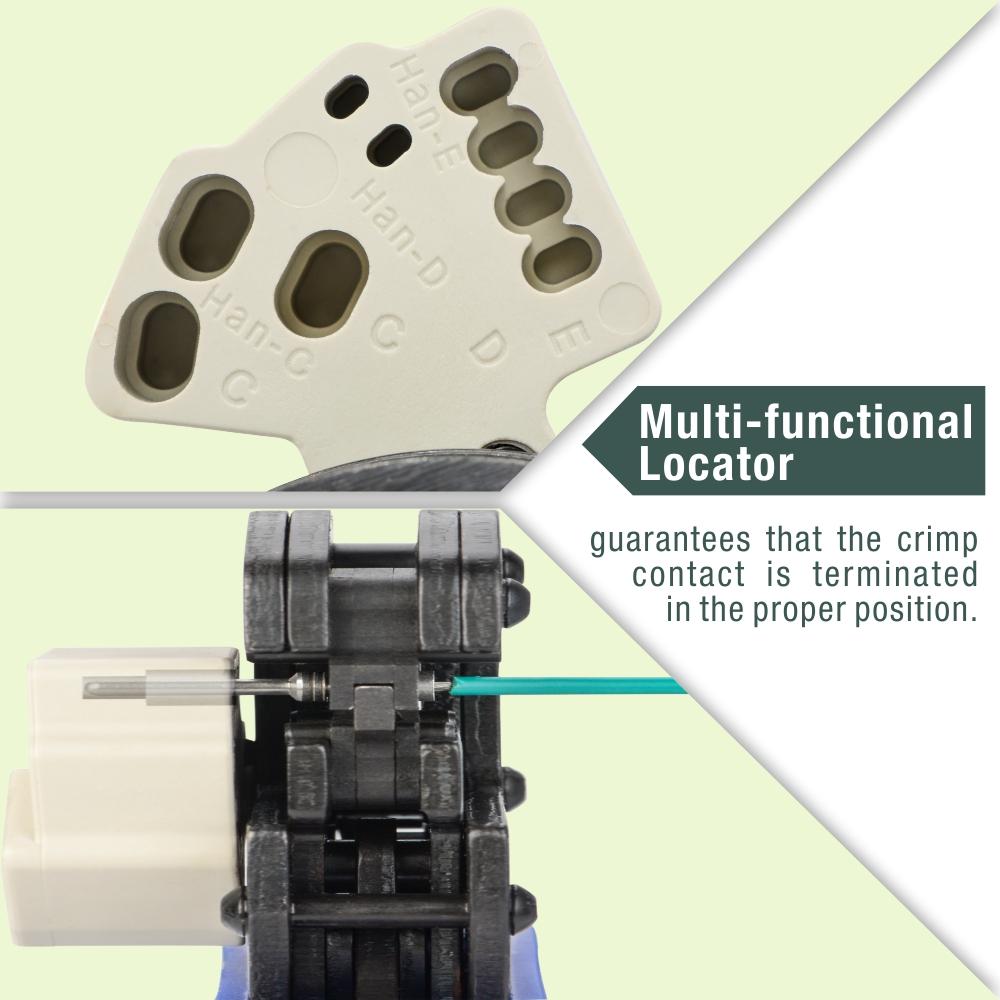

• Applicable to Han C, Han D, Han E contacts
