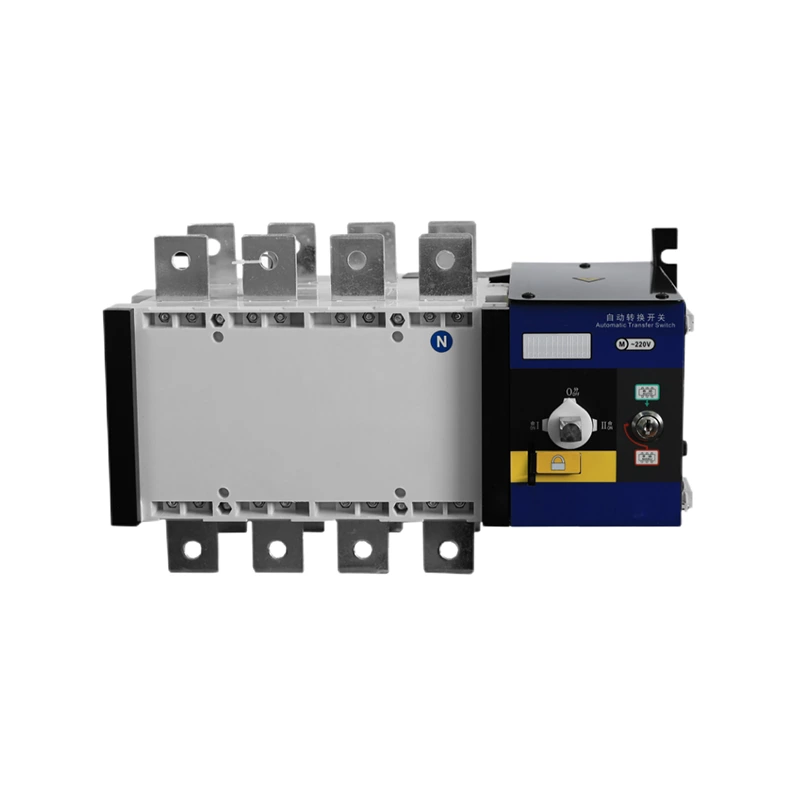

SGLD series automatic change-over switch Type&Meaning Characteristice of products SGLD series load isolation switch mainly suitable for AC 50HZ,rated voltage to 660V,DC rated voltage up to 440v,ra

...
Model Number:
SGLZ 125A~3150A
Standard:
IEC60947-1
Material:
Copper
Tightening Torque:
-5℃~40℃
Color:
white
Suitable Cable Use:
ACSR /AAAC
Certification:
CE
MOQ:
10

SGLD series automatic change-over switch

   Antomatic chage-over switch control and operation 100-3200A

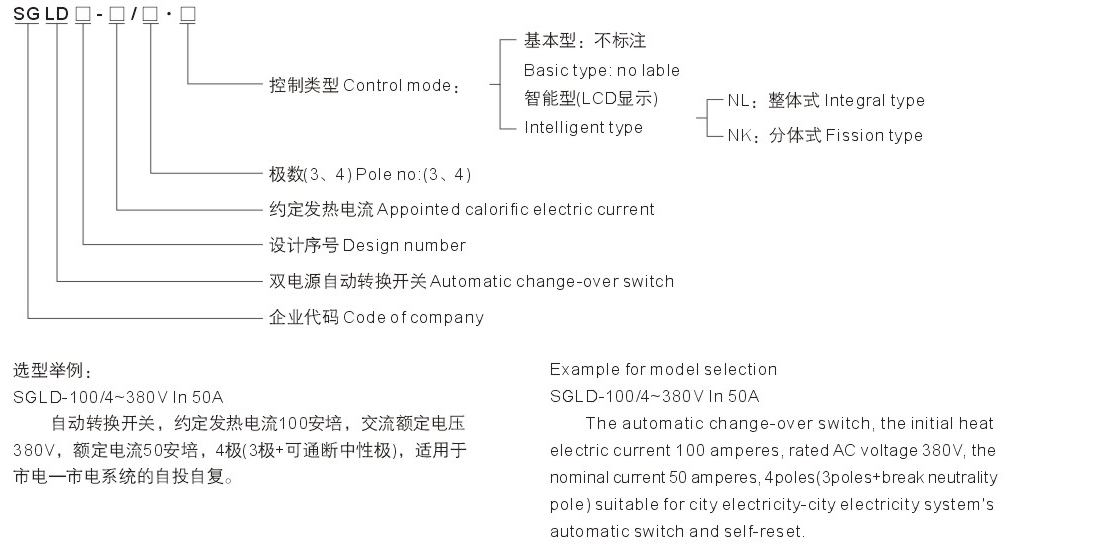

 Type&Meaning
Antomatic chage-over switch control and operation 100-3200A

Characteristice of products

SGLD series load isolation switch mainly suitable for AC 50HZ,rated voltage to 660V,DC rated voltage up to 440v,rated current up to 3,150A,The switch used in the infrequent making and breaking circuit.

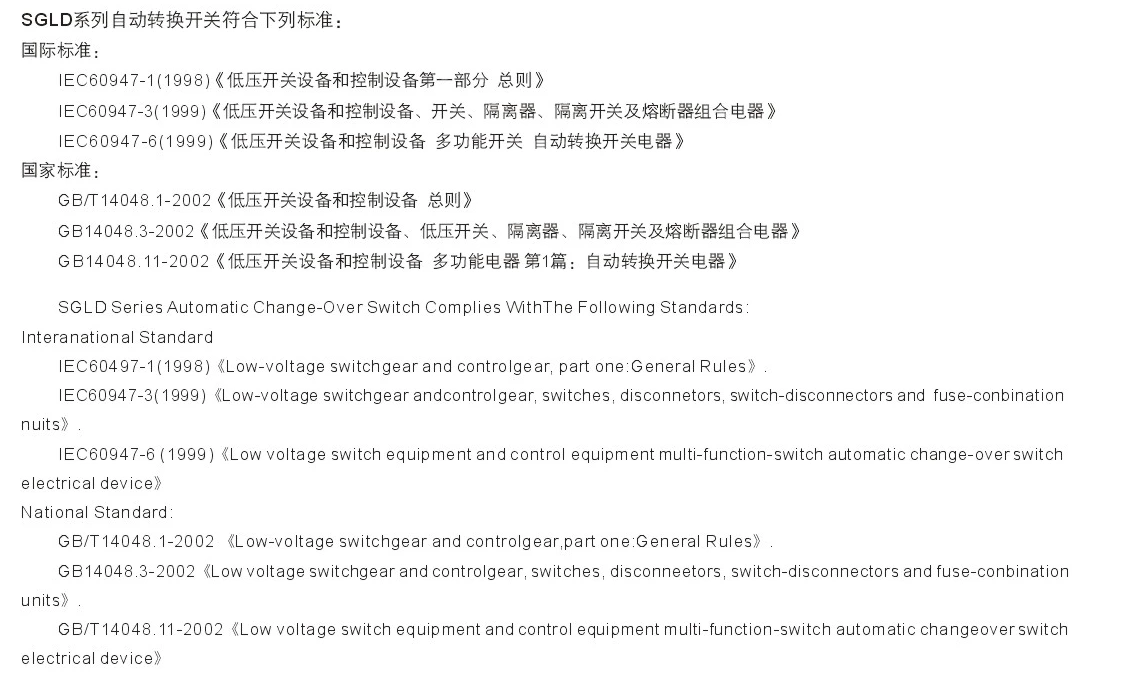

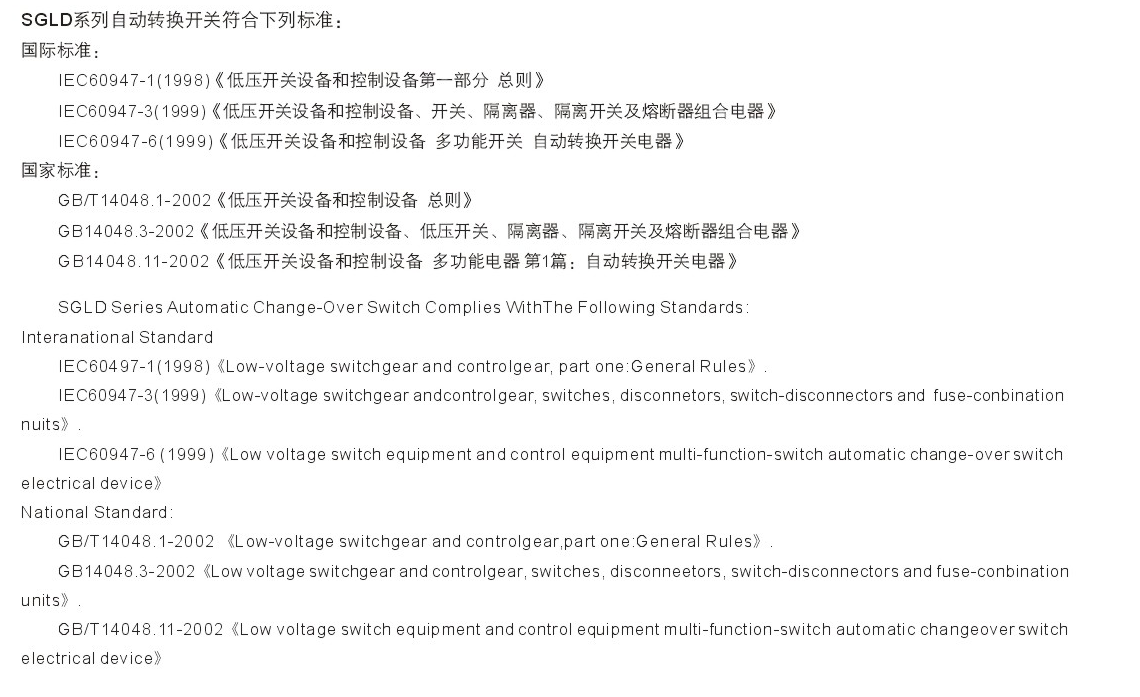

Meet the standards

Antomatic chage-over switch control and operation 100-3200A

Normal working conditions and installation conditions

■ Ambient air temperature is -5℃~+40℃, relative humidity is less than 95%.
■ The altitude of the installation site is not more than 2000 meters.
■ No explosive hazardous media.
■ No invasion of rain and snow in the environment.
Note: If the ambient air temperature is expected to be higher than +40℃ or lower than -5℃, the user should explain to the manufacturer.

Operation mode

Direct operation:

The handle is installed direcly in the middle of the switch.

Operation outside the board:

The handle is installed outside the door off distributing board.

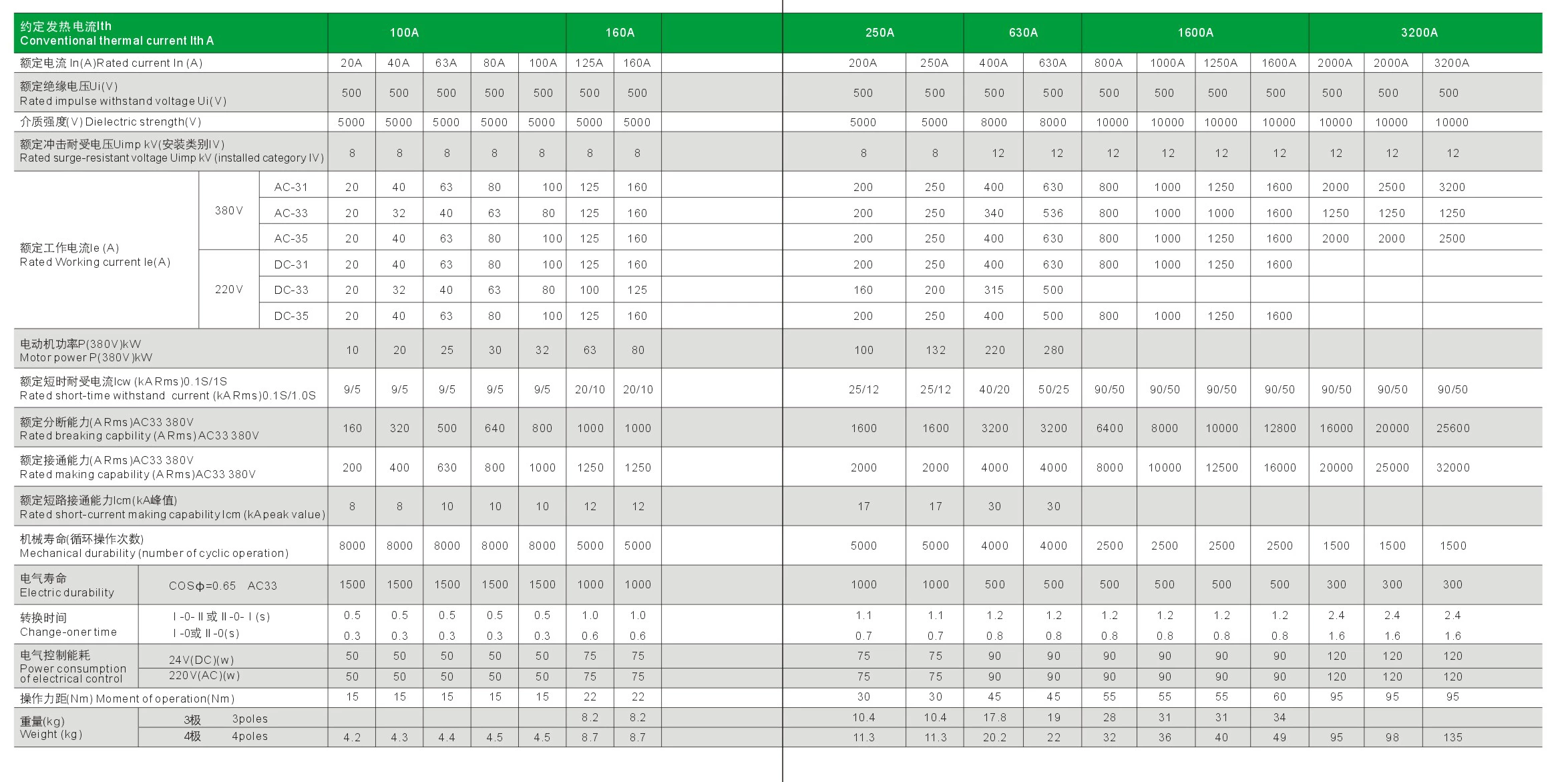

Main Technical Parameters

Antomatic chage-over switch control and operation 100-3200A

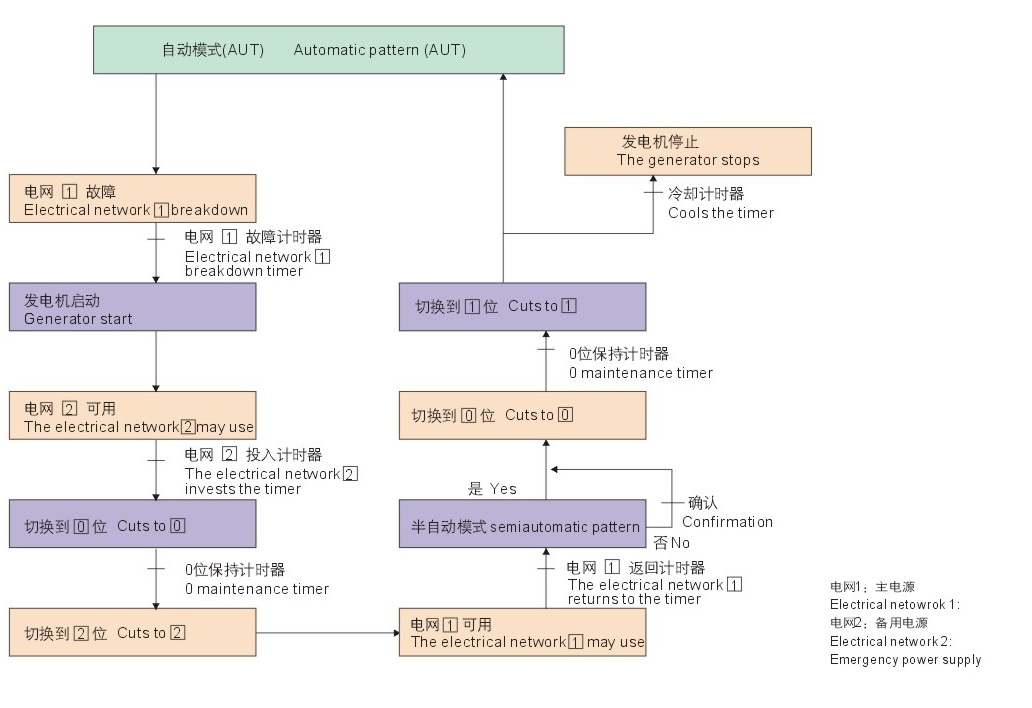

City power-oil machine automatic cut over schematic drawing

Antomatic chage-over switch control and operation 100-3200A

The logic control board will send out different logic commands to control the operation of the gear-motor directly assembled in the switch to ensure the position of the switch.

      The gear motor is made of neoprene to insulate wetness and heat,has a safety device. It will trip off whenth temperature is over 110℃ and when it is under over-current state,

where the trouble is disapperared,the device will automatically resumes its work,the reversible reduction gear adopts straight tooth gear.

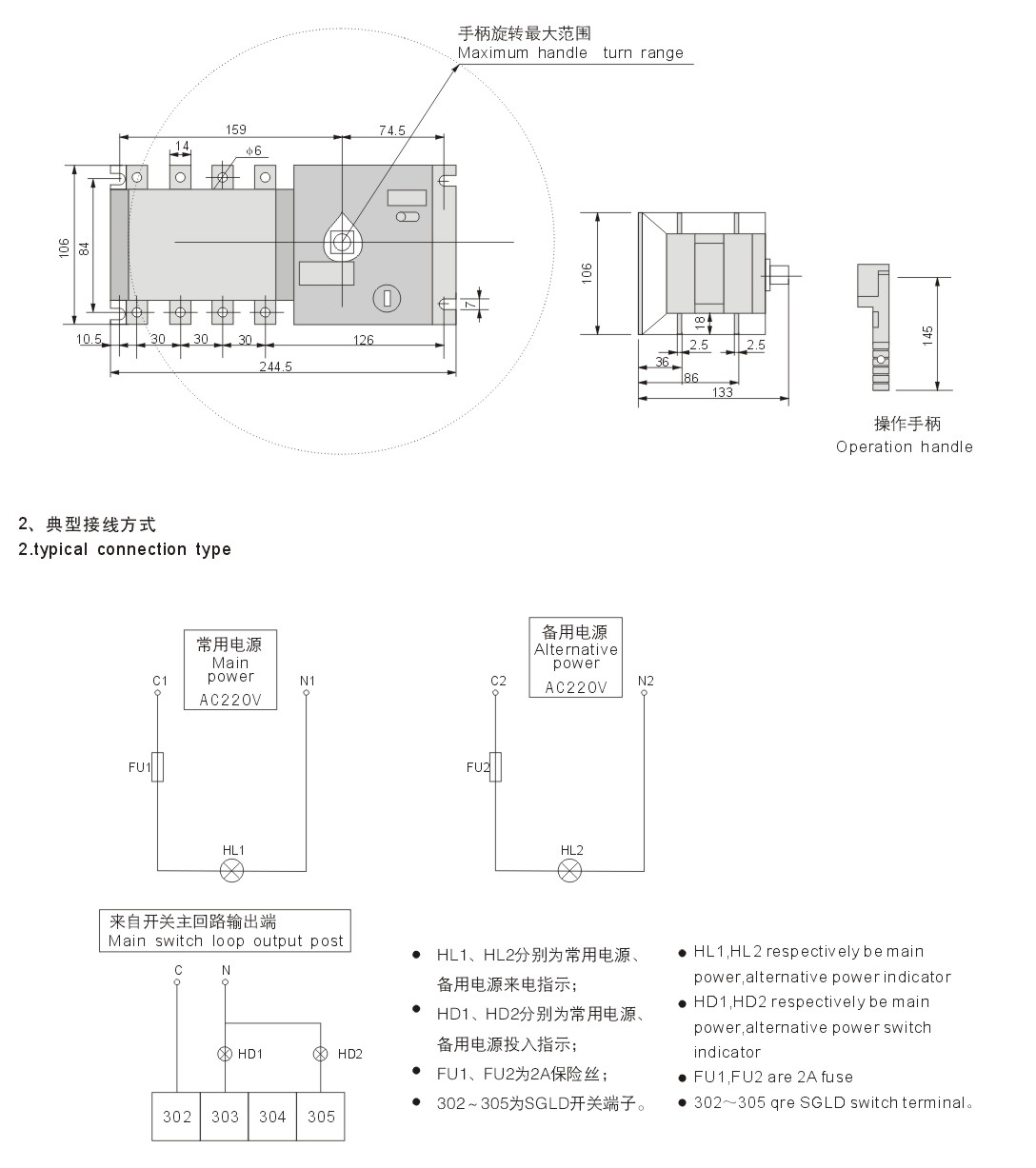

External Dimnsion and Installation Dimension(20-100A)

Antomatic chage-over switch control and operation 100-3200A
