Description
-Reliability and excellent protection based on years of experience and expertise in surge protection.
-Good anti-moisture capability, resistant to pollution.
-Long life and lightweight.
-Easy installation and maintenance.
-High energy absorption ability.
Specification
| Type | MOA Rated voltage | MOCV | 1/10 μS Steep Current impulse | 8/10μS lightning current impulse | 30/60μS switching current impulse | 2 μS Rectangular Current impulse | 4/10μS High Current impulse |
| kV(r.m.s) | kV | A | kA | ||||
| YH5W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 150 | 65 |
| YH5W-6 | 6 | 5.1 | 22.6 | 18 | 16.8 | 150 | 65 |
| YH5W-9 | 9 | 7.56 | 33.7 | 27 | 23.8 | 150 | 65 |
| YH5W-10 | 10 | 8.4 | 36 | 30 | 26.4 | 150 | 65 |
| YH5W-11 | 11 | 9.4 | 40 | 33 | 30 | 150 | 65 |
| YH5W-12 | 12 | 10.2 | 42.2 | 36 | 31.7 | 150 | 65 |
| YH5W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 150 | 65 |
| YH5W-18 | 18 | 15.3 | 61.5 | 54 | 46.5 | 150 | 65 |
| YH5W-21 | 21 | 17.0 | 71.8 | 63 | 54.5 | 150 | 65 |
| YH5W-24 | 24 | 19.5 | 82 | 72 | 62.6 | 150 | 65 |
| YH5W-27 | 27 | 22.0 | 92 | 81 | 69.8 | 150 | 65 |
| YH5W-30 | 30 | 24.4 | 102 | 90 | 79 | 150 | 65 |
| YH5W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 150 | 65 |
| YH5W-36 | 36 | 29.0 | 123 | 108 | 92.4 | 150 | 65 |
| YH10W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 250 | 100 |
| YH10W-6 | 6 | 5.1 | 22.6 | 18 | 16.8 | 250 | 100 |
| YH10W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 250 | 100 |
| YH10W-10 | 10 | 8.4 | 36 | 30 | 26.4 | 250 | 100 |
| YH10W-11 | 11 | 9.4 | 40 | 33 | 30 | 250 | 100 |
| YH10W-12 | 12 | 10.2 | 42.2 | 36 | 31.7 | 250 | 100 |
| YH10W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 250 | 100 |
| YH10W-18 | 18 | 15.3 | 61.5 | 54 | 46.5 | 250 | 100 |
| YH10W-21 | 21 | 17.0 | 71.8 | 63 | 54.5 | 250 | 100 |
| YH10W-24 | 24 | 19.5 | 82 | 72 | 62.6 | 250 | 100 |
| YH10W-27 | 27 | 22.0 | 92 | 81 | 69.8 | 250 | 100 |
| YH10W-30 | 30 | 24.4 | 102 | 90 | 79 | 250 | 100 |
| YH10W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 250 | 100 |
| YH10W-36 | 36 | 29.0 | 123 | 108 | 92.4 | 250 | 100 |
Advantage
Location
Packaging
Videos
Downloads

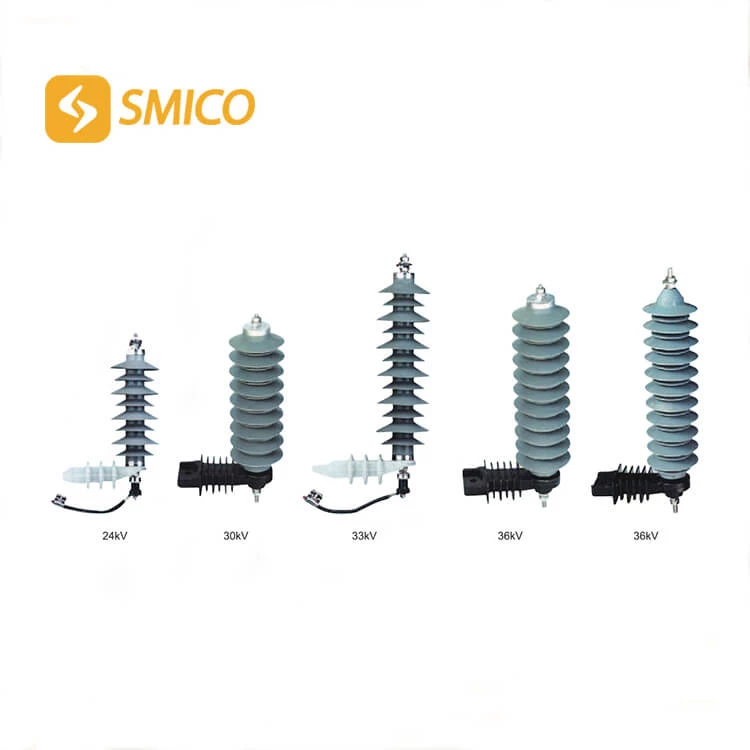

| Lightning arrester Composite Metallic Zinc-oxide Arrester | Download |
