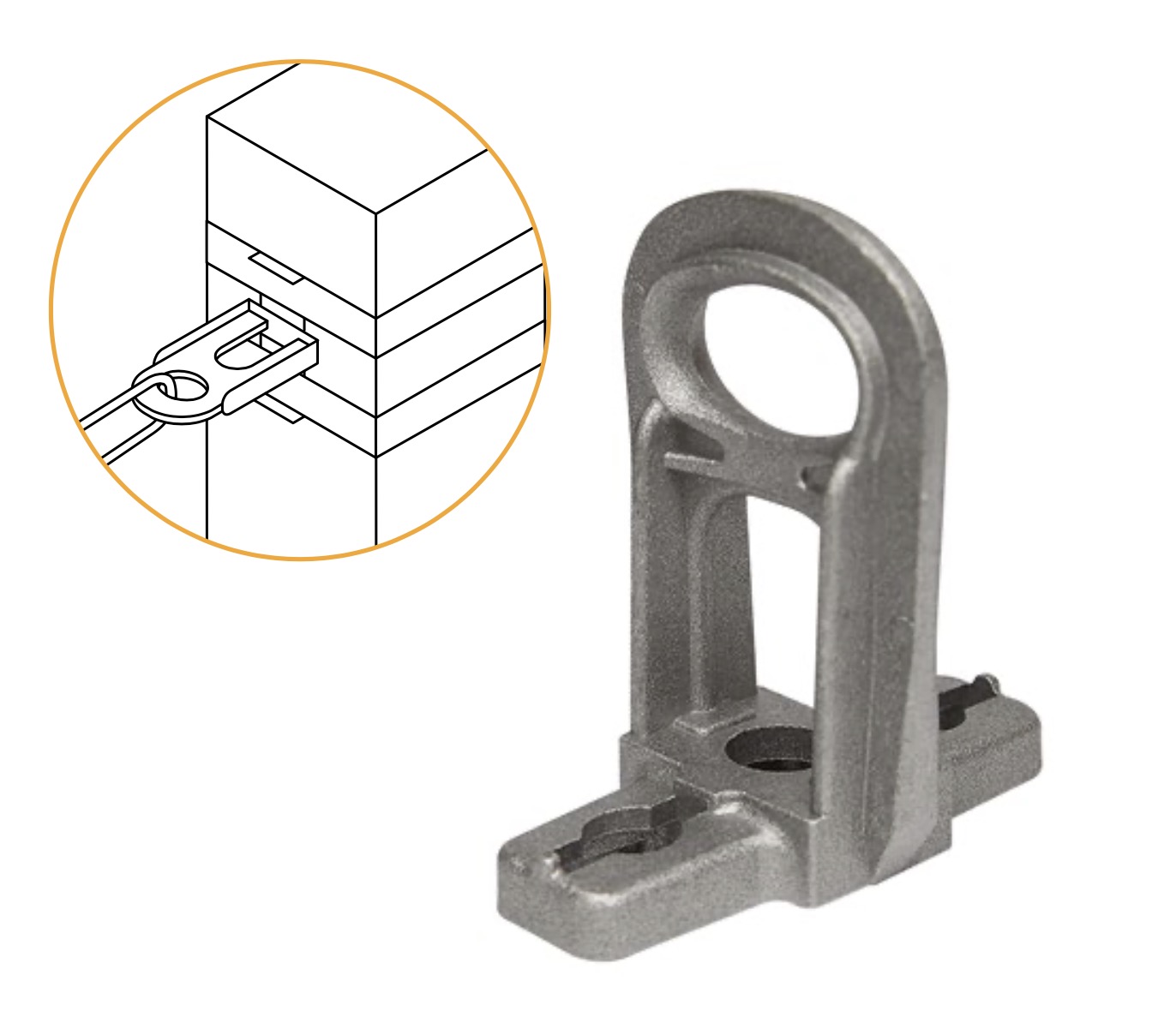

ABC Cable Anchor Suspension clamp bracket

ABC Cable pole bracket

These elements are made of high strenght aluminium alloy.

The fixing clamp is designed for single anchoring whereas the bracket offers up to 6 fixing points.

Their specific design allows fixing on wooden, metal or concrete poles.

The fixing clamp is implemented using a 10mm diameter bolt or using a 20x0.7mm stainless steel strap (tensile strength: 200daN).

The ABC cable pole bracket is implemented using a 14 or 16mm diameter bolt or using two 20x0.7mm stainless steel straps (tensile strength: 200daN/anchoring point).

This anchoring assembly meets the criteria of the NF C 33-042 and EN 50-483 standards

• Mechanical performance:the grip force of the wire clamp is 1/10 bigger than the break force of the lead. It comply with GB2314-1997
• Temperature rise performance: under the conditìon of big current, the temperature rise of connector is less than that of connection lead.
• Heat circle performance:confirms to GB/T2317.3-2000,the beat circle trial standard for electric fitting.
• Waterproof insulatìon performance:confirms to the relevant requirements in Part 2 of GB/TI3140.4-1998,
• Resistance to corrosion performance: under the conditìon of SO, and salt fog, it can do three tìmes of fourteen days circle testìng.
• Environmental aging performance:under the circumstance of ultraviolet, radiation, dry and moist, expose if with change of temperature and beat impulse for six weeks.
• Fire-proof performance: insulation material of the connector withstands glowing filament test. Confirm to the requirements in Chapter4-1 0 of GBrr5169.4
